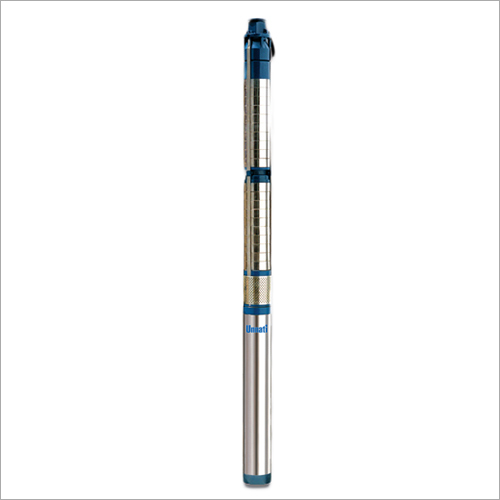

77MM Submersible Pumpsets

77MM Submersible Pumpsets
77MM Submersible Pumpsets
Product Code : V3
Brand Name : UNNATI PUMPS
Price And Quantity
  • Minimum Order Quantity
  • 8
  • Unit of Measure
  • Set/Sets
Product Description

Being a client centric firm in this domain, we have been affianced in manufacturing and supplying a high quality range of 77MM Submersible Pumpsets. The offered pump is widely used for pumping out fluid in residential and commercial places. This pump is manufactured using the best quality components under the observation of our skilled professionals. Apart from this, the provided 77MM Submersible Pumpsets can be bought from us at pocket friendly rates.

Key Points:

  • Trouble-free functionality
  • Robust construction
  • Low maintenance
  • Optimum performance

Power Range 0.5 HP - 1.5 HP
Version 200 - 240V, A.C., 50Hz, IPh
Speed 2800rpm
Flow Rate 26 To 73 1pm
Total Head Range 13 mtr to 99 mtrs.
Outlet size in inches 25mm to 32mm
Maximum Outer Diameter 75mm
Type Of Duty S1 (Continuous)
Method Of Starting Capacitor Start and Capacitor Run(CSCR) - 1 Ph
Cable Connection Sheathed PVC insulated 3-core flat cable having copper conductor.

Material Of Construction Of Pump:-
Part Name Material
Check Valve Housing C.I
Impeller Nory1*
Diffuser Nory1* with SS 304 Cladding (Fpr KLASSIS Pump)
Pump Shell (Tube) S S 304 Or S S 202 (Foe S-Std. Pump Only)
Pump Shaft S. S. 410
Suction Inter Connector C. I.
Coupling S.S. 410

Material Of Construction Of Motor
Part Name Material
Upper, Lower, Housing & Motor C. I
Stator Shell S.S 304 Or Equivalent
Shaft S.S. 431
Journal Bush Loaded Bronze
Thrust Assembly S. S. & Impregnated Carbon
